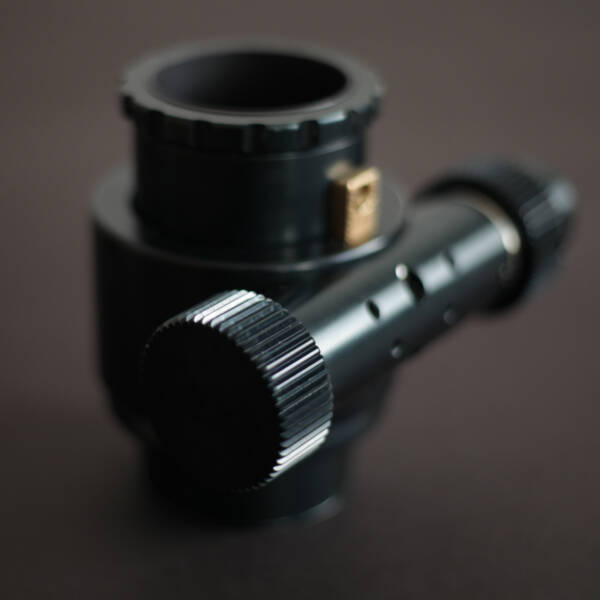

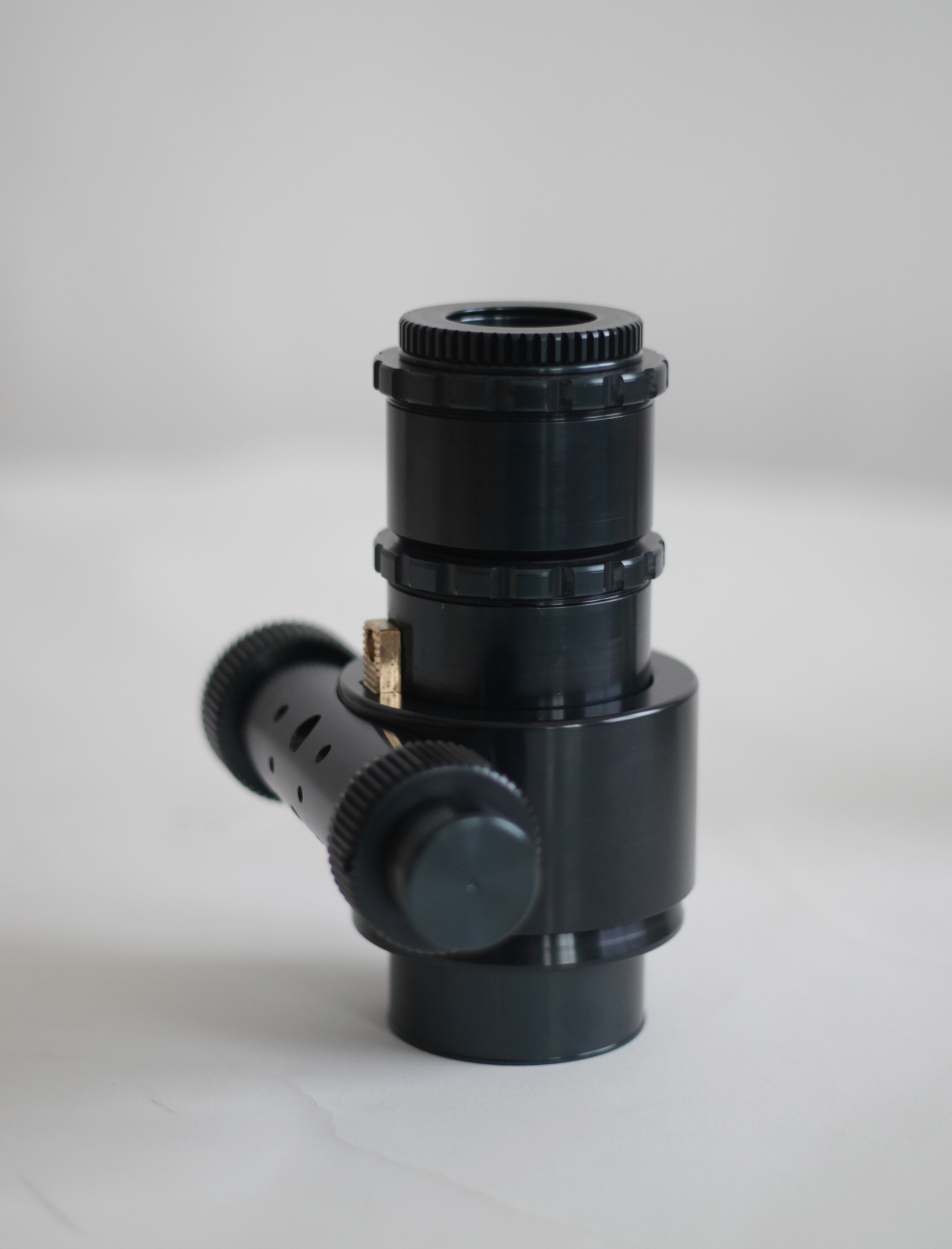

Eris 2″(50.8mm) rack and pinion with 2″ to 2″ & 2″ to 1 1/4″ (31.7mm) smoothlock adaptors

Eris 2"(50.8mm) rack and pinion with 2" to 2" & 2" to 1 1/4" (31.7mm) smoothlock adaptors
Eris 2"(50.8mm) rack and pinion with 2" to 2" & 2" to 1 1/4" (31.7mm) smoothlock adaptors - Image 2
Eris 2"(50.8mm) rack and pinion with 2" to 2" & 2" to 1 1/4" (31.7mm) smoothlock adaptors - Image 3
Eris 2"(50.8mm) rack and pinion with 2" to 2" & 2" to 1 1/4" (31.7mm) smoothlock adaptors - Image 4
Eris 2"(50.8mm) rack and pinion with 2" to 2" & 2" to 1 1/4" (31.7mm) smoothlock adaptors - Image 5
Eris 2"(50.8mm) rack and pinion with 2" to 2" & 2" to 1 1/4" (31.7mm) smoothlock adaptors - Image 6
Eris 2"(50.8mm) rack and pinion with 2" to 2" & 2" to 1 1/4" (31.7mm) smoothlock adaptors - Image 7
Eris 2"(50.8mm) rack and pinion with 2" to 2" & 2" to 1 1/4" (31.7mm) smoothlock adaptors - Image 8
Eris 2"(50.8mm) rack and pinion with 2" to 2" & 2" to 1 1/4" (31.7mm) smoothlock adaptors - Image 9
Eris 2"(50.8mm) rack and pinion with 2" to 2" & 2" to 1 1/4" (31.7mm) smoothlock adaptors - Image 10
Eris 2"(50.8mm) rack and pinion with 2" to 2" & 2" to 1 1/4" (31.7mm) smoothlock adaptors - Image 11
Eris 2"(50.8mm) rack and pinion with 2" to 2" & 2" to 1 1/4" (31.7mm) smoothlock adaptors - Image 12
Eris 2"(50.8mm) rack and pinion with 2" to 2" & 2" to 1 1/4" (31.7mm) smoothlock adaptors - Image 13
Eris 2"(50.8mm) rack and pinion with 2" to 2" & 2" to 1 1/4" (31.7mm) smoothlock adaptors - Image 14
Eris 2"(50.8mm) rack and pinion with 2" to 2" & 2" to 1 1/4" (31.7mm) smoothlock adaptors - Image 15
Eris 2"(50.8mm) rack and pinion with 2" to 2" & 2" to 1 1/4" (31.7mm) smoothlock adaptors - Image 16
Eris 2"(50.8mm) rack and pinion with 2" to 2" & 2" to 1 1/4" (31.7mm) smoothlock adaptors - Image 17
Eris 2"(50.8mm) rack and pinion with 2" to 2" & 2" to 1 1/4" (31.7mm) smoothlock adaptors - Image 18

Eris 2″(50.8mm) rack and pinion with 2″ to 2″ & 2″ to 1 1/4″ (31.7mm) smoothlock adaptors

£499.00 excl. VAT

SKU: FM2"R+P Eris Categories: ,

Description

Available now to order.

The focuser can be used on any of our telescope past and present. Easy to retrofit on 3rd party telescopes brands.

Rack and pinion fully black anodised

Rotatable 2″ focuser body.

Smooth lock

Soft feel reduction drive

2” (push fit) Compression ring, twist to lock. Drawtube thread size 61mm dia x 0.75 pitch

2” to 1 ¼” (push fit) adaptor with compression ring, twist to lock. Thread size 48mm dia x 0.75 pitch

51mm draw tube movement with  CNC machined internal baffling system.

Racked In from Mounting Face to top of 2”push fit compression ring –  57mm

Racked Out from Mounting Face to top of 2”push fit compression ring –  108MM

Weight without adaptor plate 825grams

Needs adaptor plate to suit radius of telescope or back of telescope. Contoured Focuser Base Archives – Orion Optics If you do not see what you need, let us know and we will manufacture one to suit. sales@orionoptics.co.uk
